Hybrid two-platen, compact, large parts

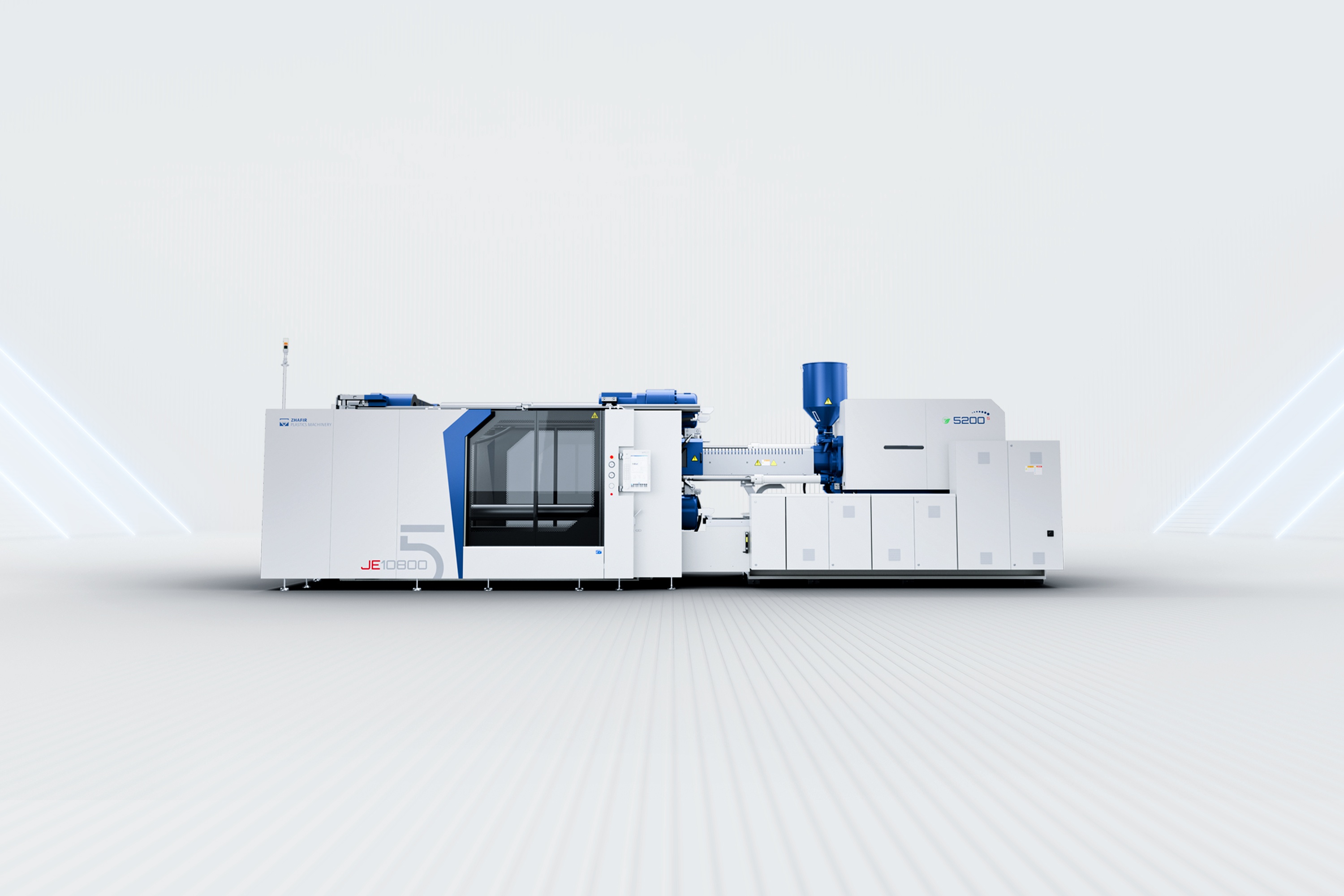

Zhafir Jenius Series

The new hybrid Generation with servo-hydraulic two-platen clamping unit and electric injection – for large, high-precision molded parts.

Clamping Unit

3,600 – 33,000 kN

Injection Volume

617 – 12,016 cm³

Max. Daylight

1,250 – 4,200 mm

Tiebar Distance

730×730 –
2270×1900 mm

Controller

Sigmatek

Screw Diameter

55 – 150 mm

The new Generation 5

30% more efficient operation
30% smaller installation space
99% application coverage
0.1% injection repeatability
Electric injection, dual-CPU control

The new generation 5

30% more efficient operation
30% smaller installation space
99% application coverage
0.1% injection repeatability
Electric injection, dual-CPU control

Highlights

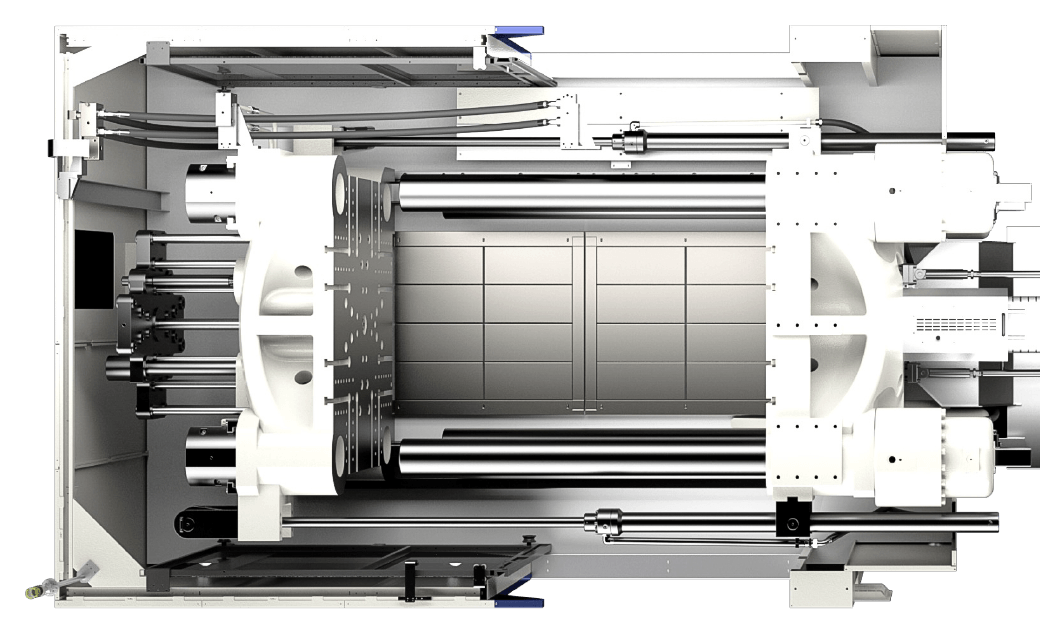

Smaller footprint

Redesigned layout with compact footprint, increased mold space, and reduced oil tank volume.

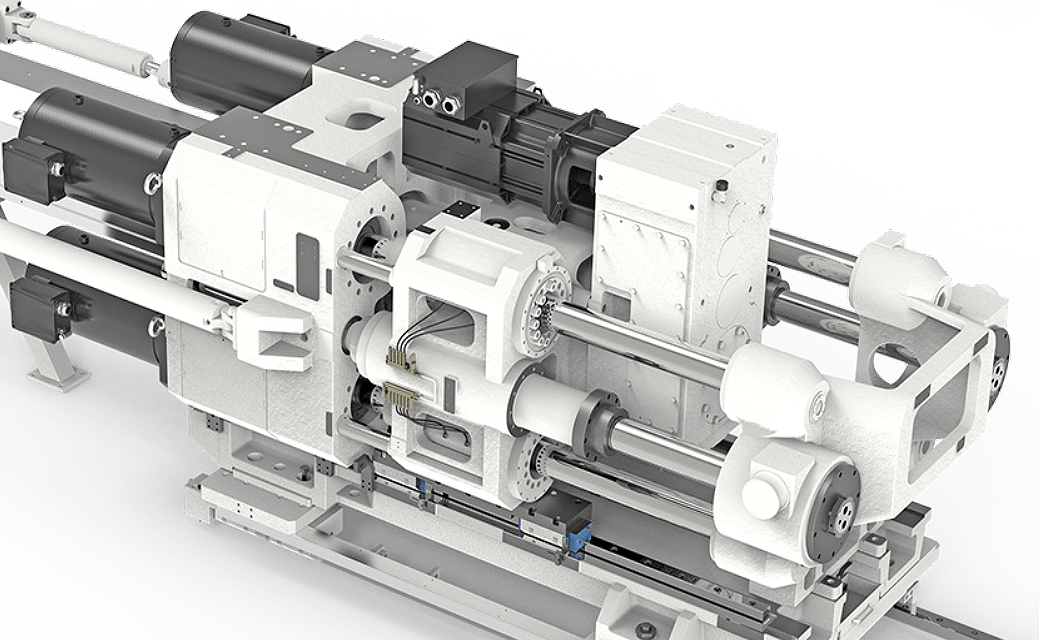

Flexible and protected injection

Units from 1,400 to 21,500 with single or multi-axis setup and integrated torque & deflection monitoring.

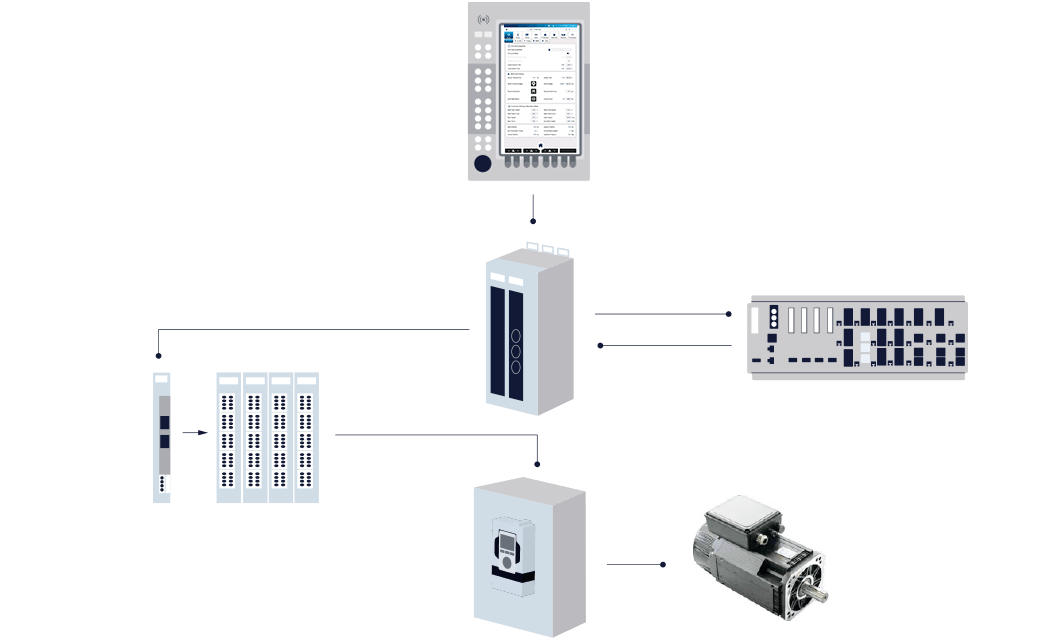

High Performance

Dual-CPU and dynamic drive system boost speed, response, and overall machine performance.

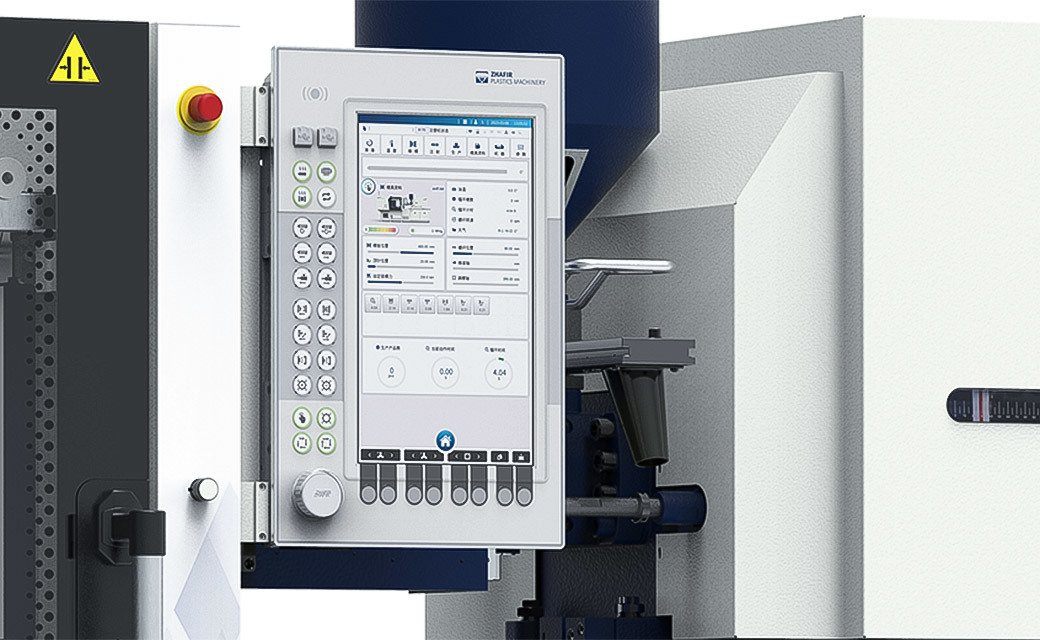

Latest Control Technology

The new multi-touch 15 inch screen provides an intuitive and user-friendly UI, enhancing interaction efficiency.

Smart Features as Standard

Our smart machines and services maximize system potential and optimize process and production , reduce costs and boost efficiency for your future-oriented, smart production.

Discover HT·XTEND

Flexible Integration as Standard

Zhafir offers a flexible integration for automated production, compatibility with all global interfaces and open connectivity into MES environmentals.

Direct Contact

No matter where you are – our regional sales & service partners are available to answer all your questions.
